NanoDrive 96W 24VDC 0-10V Dimmable CV LED Driver by EnoLED

NanoDrive 96W 24VDC  0-10V Dimmable LED Driver – Ultra-Compact, High-Efficiency, and IP65 Rated

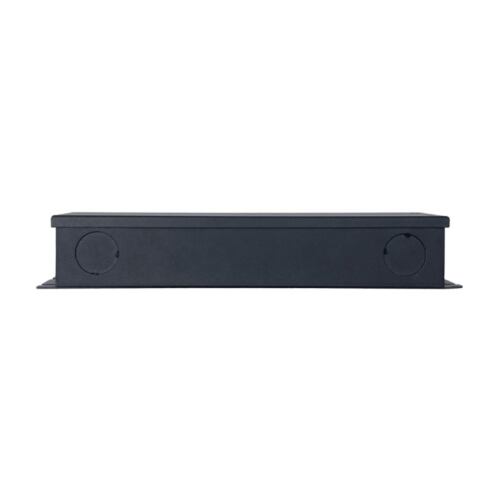

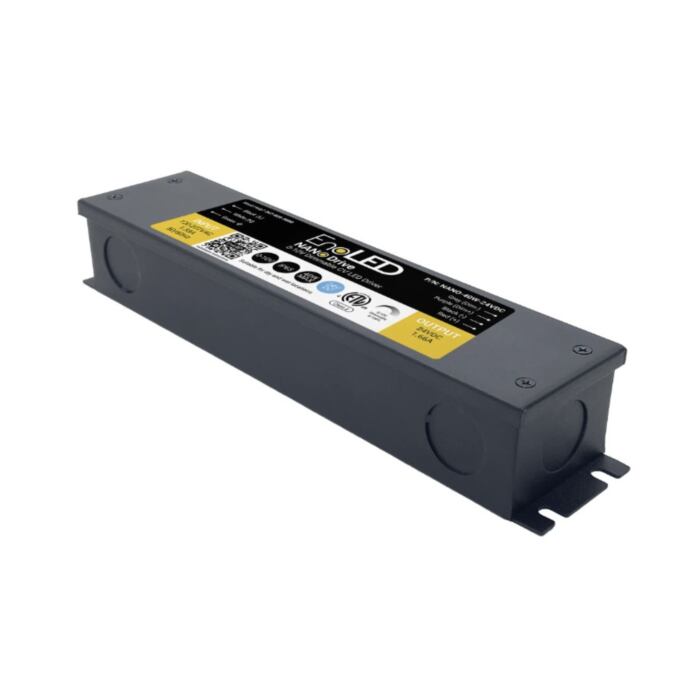

The NanoDrive 0-10V Dimmable Driver delivers powerful performance in an ultra-compact form factor, making it one of the most space-efficient LED power supplies on the market. Housed in a durable metal enclosure with a built-in junction box, this driver is designed for quick, clean installations in a variety of residential, commercial, and architectural lighting applications.

Engineered for compatibility with any standard 0-10V dimmer switch or control system, the NanoDrive offers ultra-smooth dimming down to 1%, providing exceptional control and flexibility for ambiance, task, or accent lighting. Whether used in offices, retail environments, or hospitality settings, it ensures flicker-free, noise-free dimming with seamless light transitions.

Designed to power 24VDC LED strips and tape lights, this driver boasts high efficiency and thermal stability, maximizing performance while minimizing energy loss. The universal input voltage range (100–277VAC) allows for global installation compatibility, making it a go-to solution for professional lighting designers and contractors alike.

With an IP65 rating, the NanoDrive is built to withstand exposure to dust, moisture, and low-pressure water jets, making it suitable for both damp and wet location installations—indoors or outdoors. Its rugged construction and reliable performance ensure long-lasting operation, even in challenging environments.

Incorporating overload, short circuit, over-voltage, and over-temperature protections, the NanoDrive 0-10V Dimmable Driver is a safe and versatile solution for modern LED systems, where compact size, energy efficiency, and control precision are essential.

Features:

  • 0-10V Dimmable
  • Flicker-Free Dimming to 0.1%
  • Super compact metal case
  • Built-in wiring compartments with knock-out
  • Universal 120-277VAC Input Voltage
  • 90% efficiency
  • IP65 rated for indoor and outdoor use
  • ETL Listed – Class 2 Output
  • Current limit over load protection

Specifications:

  • Max Power: 96W
  • Input Voltage: 120-277VAC
  • Output Voltage: 24VDC
  • Dimmable: 0-10V
  • IP Rating: IP65
  • Efficiency: @ Full Load 90%
  • Warranty: 6 Year
  • Dimensions: (W x H x L) 1.97” x 1.45” x 8.77”

Documents:
