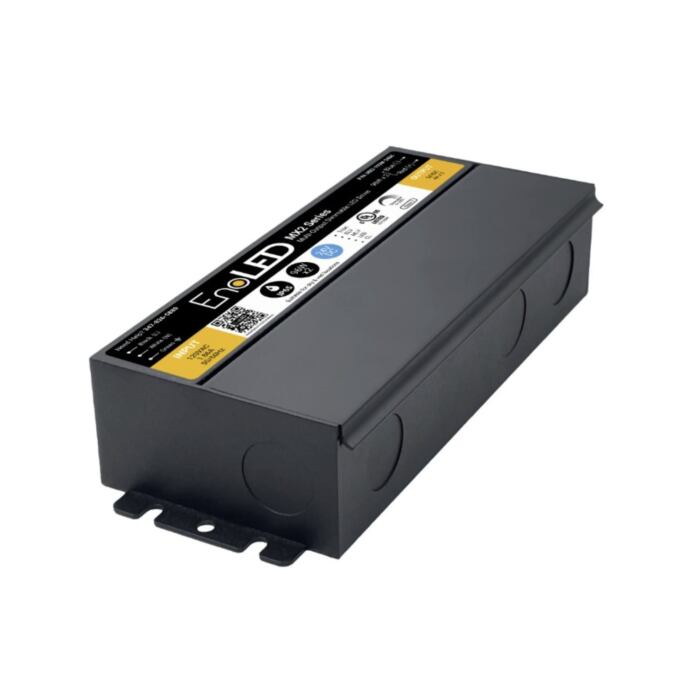

MX2 24V 96W x 2 Channels Multi Output Class 2 Phase Cut Dimmable LED Driver by EnoLED

MX2 24V 96W x 2 Channels LED Driver – Compact, Durable, and Class 2 Certified for Wet Locations

The MX2 LED Driver is a high-performance, multi-channel power supply designed for demanding low-voltage lighting applications. Housed in a compact, rugged metal enclosure, the MX2 is built to withstand the rigors of both indoor and outdoor environments while maintaining a clean, professional appearance. Its small footprint makes it easy to install in tight spaces, junction boxes, or concealed areas—perfect for modern lighting layouts that prioritize aesthetics and efficiency.

This driver is UL Listed as a Class 2 power supply, ensuring compliance with stringent safety standards for low-voltage applications. It supports multiple output channels, making it a smart choice for complex lighting setups that require synchronized, reliable power distribution.

The MX2 offers smooth dimming down to 1%, supporting a wide range of dimmer types including Incandescent, CFL, LED, Magnetic Low Voltage (MLV), and Electronic Low Voltage (ELV) switches. Whether you’re implementing ambient, accent, or task lighting, the MX2 enables precise light control without flicker, hum, or dropout.

Engineered with performance and safety in mind, the driver achieves up to 88% efficiency at full load, helping reduce energy consumption and thermal output. Integrated protection features—including over-voltage, over-temperature, short circuit, and overload safeguards—add an extra layer of reliability and peace of mind.

Rated for use in damp and wet locations, the MX2 is ideal for architectural, residential, and commercial installations that demand both performance and durability. It’s especially well-suited for 24VDC LED tape light systems, providing stable, long-lasting power for today’s advanced lighting designs.

Features:

  • New Compact Design
  • Multi-Channel UL listed class 2, LED Driver
  • Dimmable with any Incandescent/CLF/LED/MLV/ELV (leading or trading edge) dimmer switch
  • Dim down to 1%
  • IP65 rated for dry and wet locations
  • Built-in junction box with multiple ⅞” knock-outs
  • Overload and short circuits auto-reset protection
  • 88% Efficiency @ Full Load
  • 6-year warranty

Specifications:

  • Max Power: 96W x 2 Channel
  • Input Voltage: 120VAC
  • Output Voltage: 24VDC
  • Dimmable: Triac / ELV (leading or trailing edge)
  • IP Rating: IP65
  • Efficiency: @ Full Load 88%
  • Warranty: 6 Year

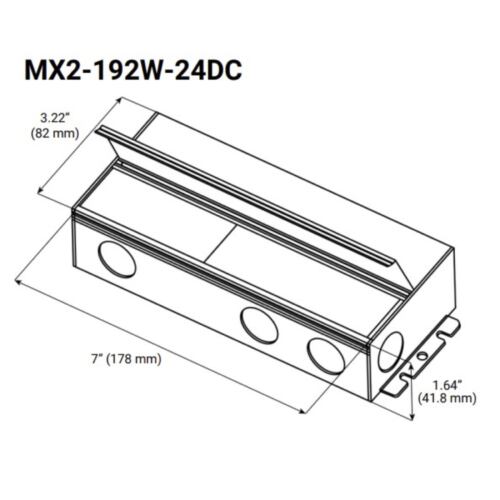

  • Dimensions: (W x H x L) 3.22″ x 1.64″ x 7.79″

Documents:
