Description

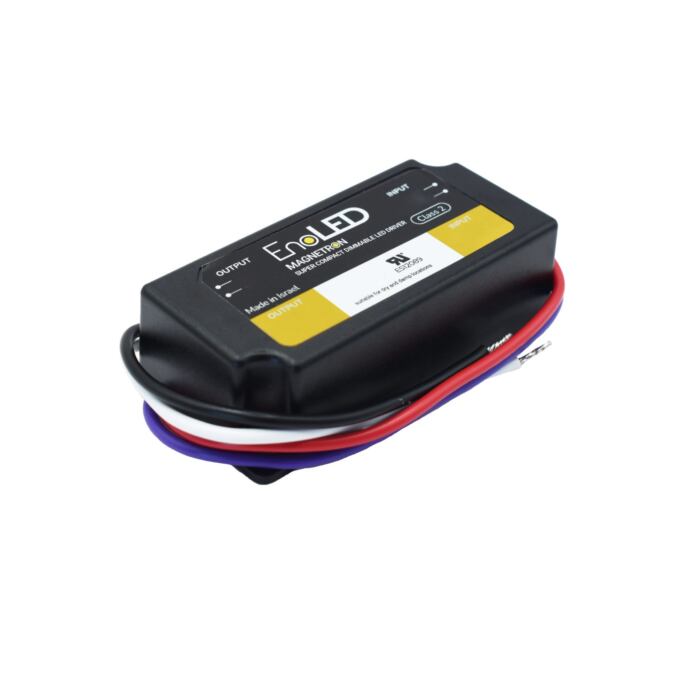

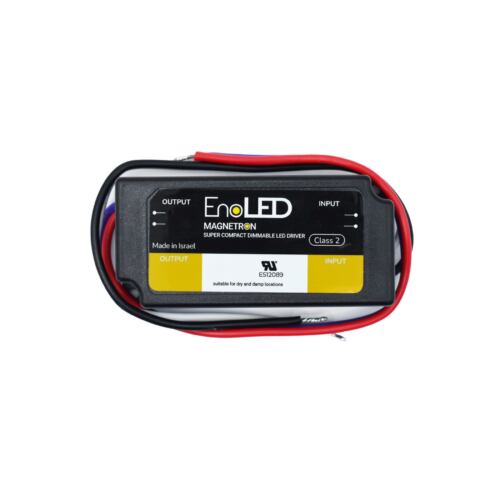

Magnetron MRD 60W 12VDC Phase Cut Dimmable LED Driver by EnoLED

MAGNETRON MRD 60W 12VDC UL Listed Class 2 Phase-Cut Dimmable LED Driver – Compact, Efficient, and Versatile

The MAGNETRON UL Listed Class 2 LED driver is a high-performance solution designed for powering 12VDC LED strip lighting with superior reliability and dimming capabilities. Engineered with a sleek, ultra-compact housing, this driver is specifically built to fit seamlessly into standard electrical junction boxes, making installation fast and hassle-free in both new construction and retrofit projects.

Supporting smooth dimming all the way down to 1%, the MAGNETRON driver is fully compatible with most ELV and TRIAC dimmer switches—whether leading-edge or trailing-edge—delivering flicker-free operation and consistent light output. This ensures optimal ambiance control for residential, commercial, and hospitality lighting applications.

Built to meet stringent safety and efficiency standards, the driver is UL Listed for Class 2 applications and is ideal for low-voltage LED tape lights. With high efficacy and low thermal output, it ensures long-lasting performance, reduced energy consumption, and minimal maintenance. Whether you’re illuminating under cabinets, cove ceilings, display cases, or accent features, the MAGNETRON driver delivers the dependable power and dimming precision your project demands.

Perfect for professionals seeking a space-saving, code-compliant, and high-efficiency driver, the MAGNETRON sets a new standard in compact LED power solutions.

Features:

  • Super Compact Case – Fits Into Any J-box
  • Ul Listed – Class 2
  • Dimmable With Any Triac / ELV Dimmer Switch
  • Dim Down To 1%
  • Overload And Short Circuits Auto-reset Protection
  • 88% Efficiency @ Full Load
  • Up To 96w
  • Damp And Dry Location

Specifications:

  • Max Power: 60W
  • Input Voltage: 120VAC
  • Output Voltage: 12VDC
  • Dimmable: Triac / ELV (leading or trailing edge)
  • IP Rating: IP23
  • Efficiency: @ Full Load 87%
  • Warranty: 6 Year
  • Dimensions: (W x H x L) 1.57″ x 0.98″ x 3.31″
