Description

IOTA ILB CP10 A M5 Dual Flex 10-Watt Constant Power Emergency LED Driver (*2606TF)

The IOTA ILB CP10 A is a high-performance UL Listed and Classified LED emergency driver designed to provide uninterrupted emergency lighting in the event of a power failure. This versatile unit enables a single LED fixture to function seamlessly in both normal and emergency modes, eliminating the need for separate emergency lighting systems. When a power outage occurs, the ILB CP10 automatically engages emergency operation and delivers constant illumination to the fixture for up to 90 minutes, ensuring safety and compliance with emergency lighting requirements.

Housed in a compact, all-in-one enclosure, the ILB CP10 includes a long-life lithium battery, integrated charger, and a high-efficiency converter circuit. It delivers constant power output of 10 watts to LED loads operating within a voltage range of 10V to 60V. The unit’s Constant Power design ensures consistent lumen output throughout the emergency runtime, regardless of battery discharge levels. Multiple mounting options are available to accommodate various fixture designs and installation needs.

Features:

  • UL 924 Listed, UL Listed and Classified to FTBV
  • UL 1310 Certified, Output Class 2 Compliant
  • Three mounting configurations available
  • Long life high temperature recyclable
  • Ni-Cad battery
  • Galvanized steel case

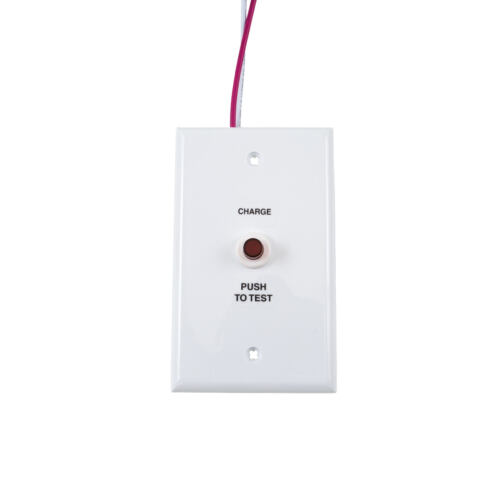

  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched or unswitched fixtures
  • 5-Year Warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Suitable for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminaires
  • RoHS Compliant

Specifications:

Input Voltage: (Universal) 120-277VAC, 50/60Hz
Input Rating (120/277): 3.7 Watts (max)
Output Voltage: 10-60VDC Class 2 Compliant
Output Current: 1.0A (@10VDC) – 0.16A (@60VDC)
Output Power: 10 Watts (constant)
Max. AC Driver Output Current: 3Adc
Power Factor: ≥ 0.9
Emergency Operation: 90 minutes
Operating Temp: 0° to 55° C
THD: < 20%
Battery: High Temp Nickel-Cadmium, 24 Hour Recharge, 7-10 Year Life Expectancy
Weight: 4.0 lbs.
Approval: UL Listed for factory and field installation, CSA C22.2 No 141

Documents:



SKU: *2606TF
