Description

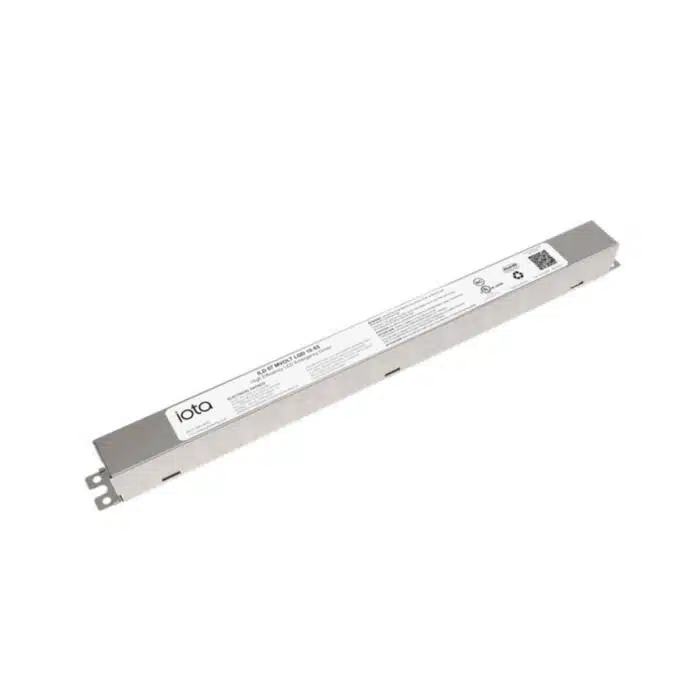

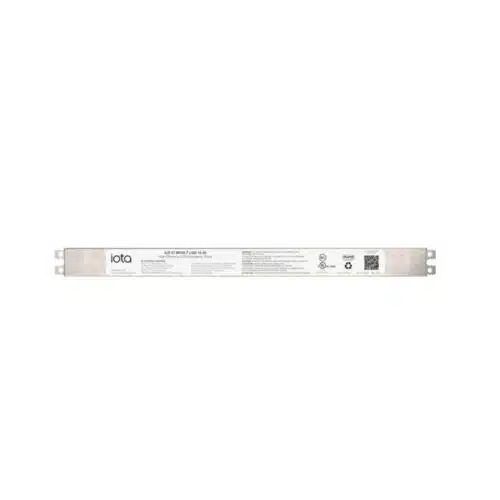

IOTA *286LFN – 7W ILD 7 MVOLT LQD 10-55 TBTSPLENUMSS J10 7 Watt High Efficiency LED Emergency Driver

IOTA *286LFN – 7W ILD is a 10-55VDC, Class 2 output, emergency driver with an integrated battery featuring AC Activate intelligent circuit design, providing consistent illumination levels with its Constant Power design, over a minimum of 90 minutes of emergency runtime.

It features self-testing and user-selectable automatic diagnostics to perform the required monthly and annual testing and includes a single-piece test switch with an integrated charge/diagnostics light indicator.

With its linear form factor and a Quick Disconnect harness with flying leads, it is intended for embedded luminaire design or field servicing. UL 924 listed, IP67-rated, and supporting an operating temperature range of 0° to 55°C, the ILD 7W is suited for IC-rated recessed lighting and plenum installations.

Features:

  • UL 924 Listed, UL Listed and Classified to FTBR
    (US) FTBR7 (Canada)
  • Auto-Sense 10-55VDC output is UL 1310 Certified, Output Class 2 Compliant
  • AC Activate circuitry simplifies wiring by eliminating the need for manual battery connection during installation

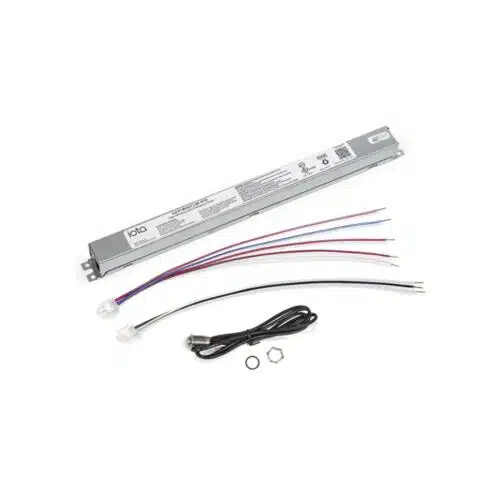

  • Quick Disconnect harness design simplifies servicing or replacement in the field
  • For use with switched or unswitched fixtures
  • 5-Year Warranty
  • Meets or exceeds all NEC, IBC, and Life Safety Code Emergency Lighting Requirements
  • Certified for CA Title 20
  • Suitable for use in Plenum, Damp Location, and Recessed Type IC Luminaires
  • RoHS Compliant

Specifications:

  • Input Voltage:  (Universal) 120-277VAC, 50/60Hz
  • Input Rating:  20mA (max)
  • Output Voltage:  10-55VDC Class 2 Compliant
  • Output Current:  0.7A (@10VDC) – 0.13A (@55VDC)
  • Output Power:  7 Watts (constant)
  • Max. Output Current:  1.4A
  • Surge Protection:  Meets ANSI/IEEE C62.41.2-2002
  • Emergency Operation:  90 minutes
  • Operating Temp:  0° to 55° C
  • EMI:  Complies to FCC Commercial Limits
  • Battery:  Lithium Iron-Phosphate; 24 Hour Recharge; 5-7 Year Life Expectancy
  • Weight:  1.25 lbs.
  • Approval:  UL Listed for factory and field installation; CSA C22.2 No 141; CA T20 Appliance Efficiency Database

Documents:



SKU: *286LFN
