Description

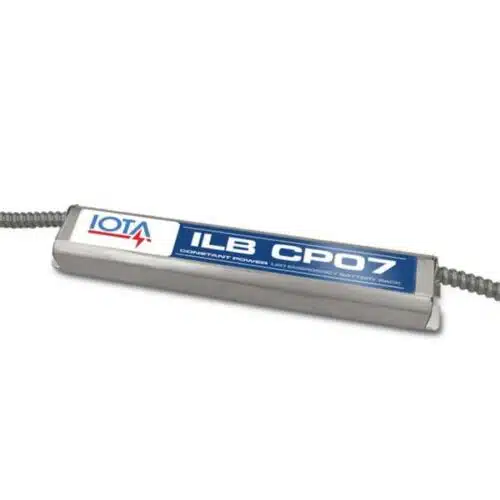

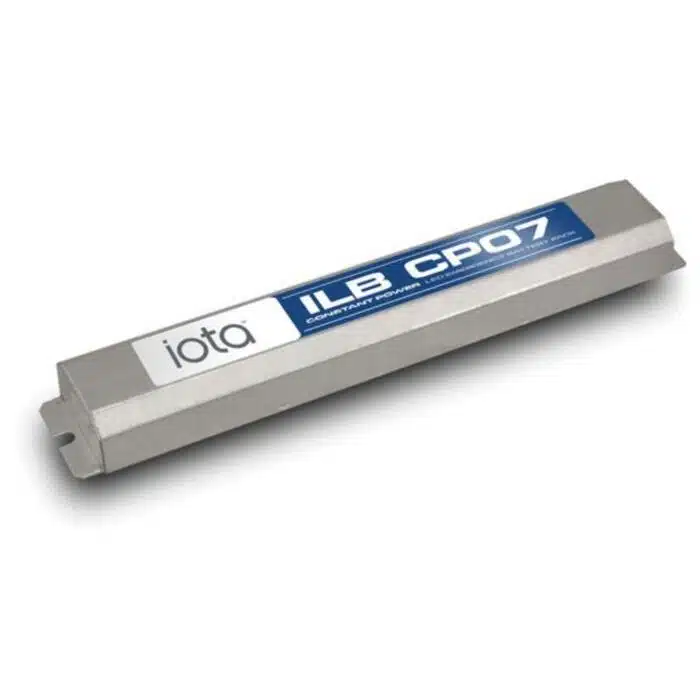

IOTA *2606TC – ILB CP07 A M5 7 Watt Constant Power LED Emergency Driver / Battery Pack

IOTA *2606TC – ILB CP07 is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP07 switches to the emergency mode and operates the existing fixture for 90 minutes. The unit contains a battery, charger, and converter circuit in a single can and is available in different mounting configurations for individual fixture requirements. The Constant Power design of the ILB CP07 maintains the output wattage to the LED array even as the system voltage diminishes.

LED Operation:

  • 7 Watts Constant Power
  • 10-60 VDC Nominal Output

Product Advantages:

  • UL Listed for field installation
  • Constant Power Design maintains emergency illumination through a 90-minute runtime with no light degradation
  • Two-wire universal AC input
  • Self-sensing output voltage allows the CP Series to operate various product types, such as downlights, troffers or strips, reducing product SKUs for emergency options

Features:

  • UL 924 Listed for U.S. and Canada
  • UL 1310 Certified, Output Class 2 Compliant
  • Six mounting styles available
  • Long-life high-temperature recyclable Ni-Cad battery
  • Galvanized steel case
  • Includes single-piece TBTS test switch and charge indicator accessory kit
  • For use with switched and unswitched fixtures
  • Meets or exceeds all National Electric Code and Life Safety Code Emergency Lighting Requirements
  • Rated for use in Plenum, Damp Location, Recessed Type IC, and Enclosed and Gasketed Luminares
  • RoHS Compliant
  • 5-Year Warranty

Specifications:

  • Input Voltage:  (Universal) 120-277VAC, 50/60Hz
  • Input Rating (120/277):  3.5 Watts (max)
  • Output Voltage:  10-60VDC Class 2 Compliant
  • Output Current:  0.7A (@10VDC) – 0.12A (@60VDC)
  • Output Power:  7 Watts (constant)
  • Max. AC Driver Output Current:  3Adc
  • Power Factor:  ≥ 0.9
  • Emergency Operation:  90 minutes
  • Operating Temp:  0° to 55° C
  • THD:  < 20%
  • Battery:  High Temp Nickel-Cadmium; 24 Hour Recharge; 7-10 Year Life Expectancy

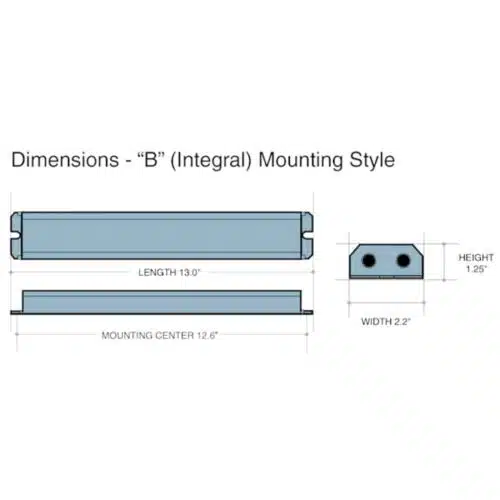

  • Weight (configuration):  3.0 lbs. (A, R); 2.5 lbs. (B); 2.75 lbs. (J)
  • Approval:  UL Listed for factory and field installation; CSA C22.2 No 141
