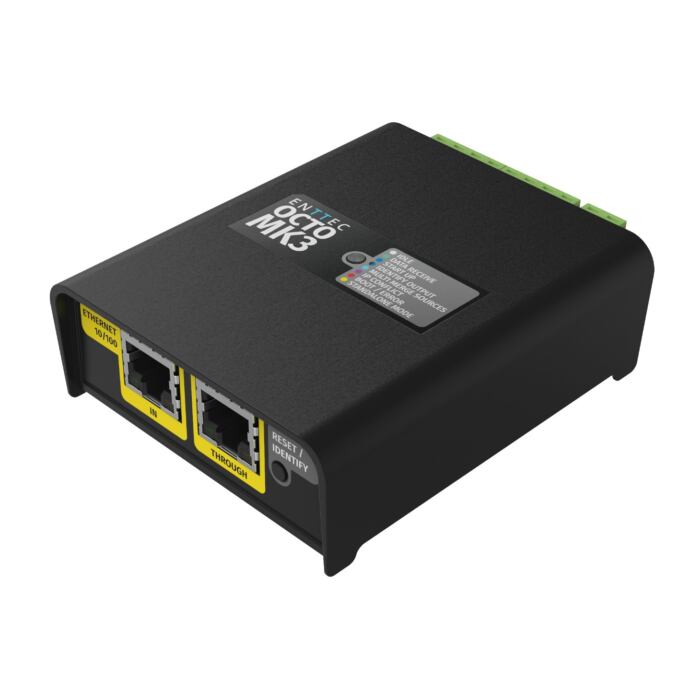

Enttec Octo MK3 71522 32-Universe LED Pixel Converter/Controller

The ENTTEC OCTO MK3 is a high-performance, compact, and reliable pixel controller designed to convert up to 32 universes of Art-Net, sACN, Kinet, and ESP to SPI pixel data with port sync.

It features flexible pixel output configuration, supporting up to 8 universes per port, with 2 outputs when using Clock support and up to 4 outputs when repurposing Clock as additional data ports. The overdrive mode is automatically activated when outputting more than 6 universes per port, ensuring seamless performance under high data loads.

Engineered for maximum versatility, the OCTO MK3 supports over 20 industry-standard pixel protocols and enables custom protocol creation for specialized applications (refer to the Custom Protocol Creation Guide). With dual Ethernet ports, it facilitates network daisy-chaining, optimizing data distribution without additional hardware.

With an inbuilt FX engine, the Standalone Mode allows users to create gradient effects with real-time previews directly through the web interface. The device can be configured to run standalone upon power-up, eliminating the need for a dedicated DMX source.

Features:

  • Flexible pixel output configuration – Supports data and clock signals or can repurpose clock for additional data output.
  • Supports up to 32 universes of Art-Net, sACN, Kinet and ESP with overdrive mode.
  • Extensive protocol support, including both data and clock-based configurations.
  • Custom pixel protocol creation for specialized applications.
  • Daisy-chain networking for efficient data distribution.
  • Supports DHCP and Static IP addressing.
  • Grouping functionality reduces input channel count for streamlined configuration.
  • Surface or TS35 DIN rail mounting options.
  • Identify/Reset button for quick wiring verification without a network connection.
  • Port Sync ensures all ports stay synchronized, preventing inconsistencies and ensuring smooth operation.
  • User-friendly web interface for intuitive device configuration and firmware updates.
  • Inbuilt FX engine for standalone gradient effects without requiring an external DMX source.

Note: OCTO does not provide power to lighting fixtures

Specifications:

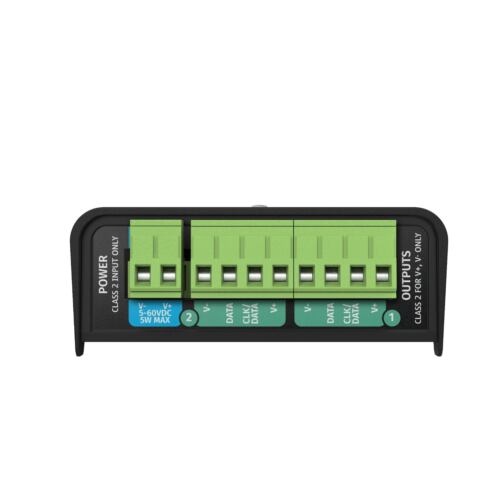

  • Connectors: 2 x Network (RJ45), 2 x Multifunctional Data Port (4Pin Screw Terminal), 1 x Power Port (2Pin Screw Terminal)
  • IP Rating: IP20
  • Input Voltage: 5-60V DC
  • Max. Power Draw: 5W
  • Max. Heat Dissipation: 4.5 W
  • Max. Output Voltage: 5V
  • Max. Output Current: 50mA
  • eDMX Input Protocol: Art-Net, sACN, ESP, KiNet
  • Network Speed: 10/100Base-T
  • Network Discovery: ENTTEC’s EMU software
  • Network Configuration: Static (Default 192.168.0.10) /DHCP
  • Recommended Network Device Quantity Per Chain: Chains of up to 8 devices give optimum synchronization between outputs.
  • Data Output Type: SPI (NZR)
  • Max. eDMX -> Pixel Conversion Per Device: 32 Universes (16,384 channels)
  • Max. Pixels Controllable Per Device: RGB 5,440 (1,360 per port), RGBW 4,096 (1,024 per port)
  • Max Frame Rate: 100fps
  • Firmware Updates: Web Interface
  • LED Indicators: Forward-facing LED indicator, Network link/activity
    (integrated into RJ45 ports)
  • Cooling Method: Convection
  • Operating Temperature: -20°C to 50°C /-4°F to 122°F
  • Operating Humidity: 5 to 95% (non-condensing)
  • Body Material: ABS plastic

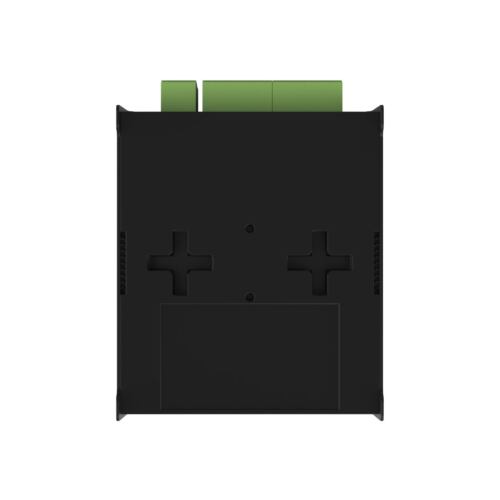

  • Mounting Options: Surface & TS35 DIN Rail mount
  • Unit Dimensions: 100.5*77.9*31 mm
  • Unit Weight: 0.08kg / 0.18lbs
  • Shipping Dimensions: 165*145*43 mm
  • Shipping Weight: 0.18kg / 0.39lbs
  • Warranty: 3-year return to the base manufacturer warranty

Box Content:

  • OCTO MK3
  • 2 x WAGO connectors
  • 1 x Din mounting clip & screws
