ENTTEC OCTO LITE eDMX to SPI Pixel Controller (71523)

Description

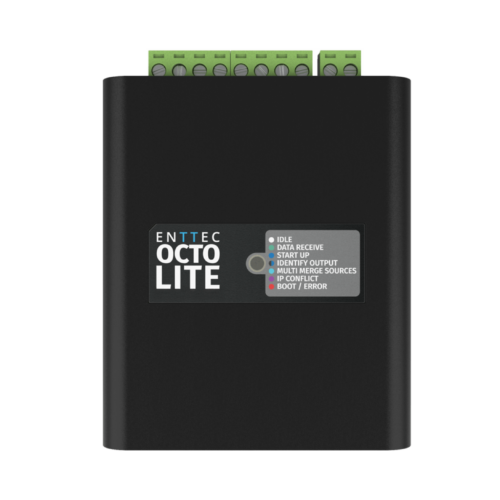

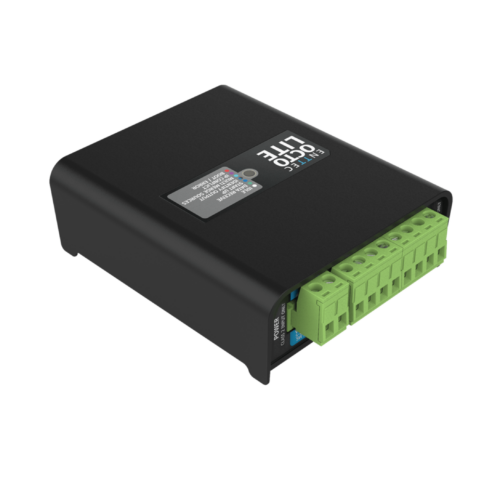

ENTTEC OCTO LITE 71523 eDMX to SPI Pixel Controller

The ENTTEC OCTO LITE is a compact DIN-rail mounted pixel controller designed to convert Ethernet-based eDMX protocols into SPI output for LED pixel systems. It delivers reliable, high-performance control for professional lighting installations requiring efficient data distribution and synchronization.

Engineered for flexibility and scalability, the OCTO LITE processes up to 8 universes of Art-Net, sACN, and ESP over Ethernet, distributing data across multiple outputs with precision. Its support for a wide range of industry-standard pixel protocols, along with custom protocol configuration, makes it suitable for diverse and specialized lighting applications.

The unit features dual Ethernet ports with built-in port synchronization, enabling seamless daisy-chaining and consistent data output across devices without additional networking hardware. Designed for streamlined installation, it supports a wide input voltage range and offers a compact 4-module DIN form factor, making it ideal for space-constrained environments while maintaining robust performance and reliability.

Features:

• Supports up to 8 universes of Art-Net, sACN, and ESP for pixel control
• Converts Ethernet eDMX data to SPI pixel output
• Supports over 20 industry-standard pixel protocols
• Allows custom pixel protocol creation for specialized applications

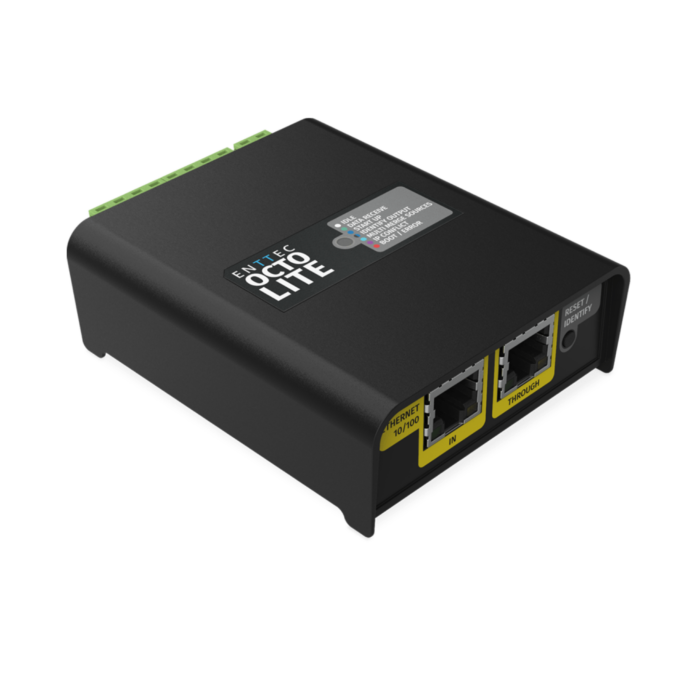

• Dual Ethernet ports enable network daisy-chaining
• Port Sync functionality ensures synchronized output across all ports
• Supports DHCP and static IP configuration
• Grouping functionality reduces input channel requirements
• User-friendly web interface for configuration and firmware updates
• Identify and reset button for quick wiring verification

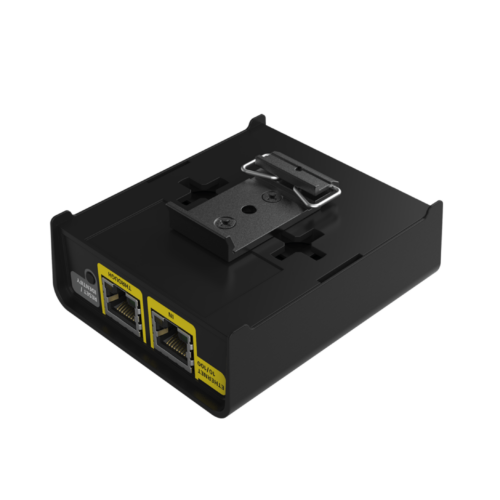

• Compatible with surface mounting and TS35 DIN rail installation

Note:

• Does not provide power to lighting fixtures

Specifications:

• Input Voltage: 5–60V DCMax Power Draw: 5W
• Data Output Type: SPI (NZR)
• eDMX Input Protocols: Art-Net, sACN, ESP
• Max Universes: 8 universes (4,096 channels)
• Max Pixels: 1,360 RGB or 1,024 RGBW
• Max Frame Rate: 100 fps
• Network Speed: 10/100Base-T
• IP Rating: IP20
• Operating Temperature: -20°C to 50°C
• Mounting: Surface or TS35 DIN rail
• Dimensions: 100.5 × 77.9 × 31 mm
• Weight: 0.08 kg

Box Content:

• OCTO LITE

Documents:

Datasheet

SKU# 71523
