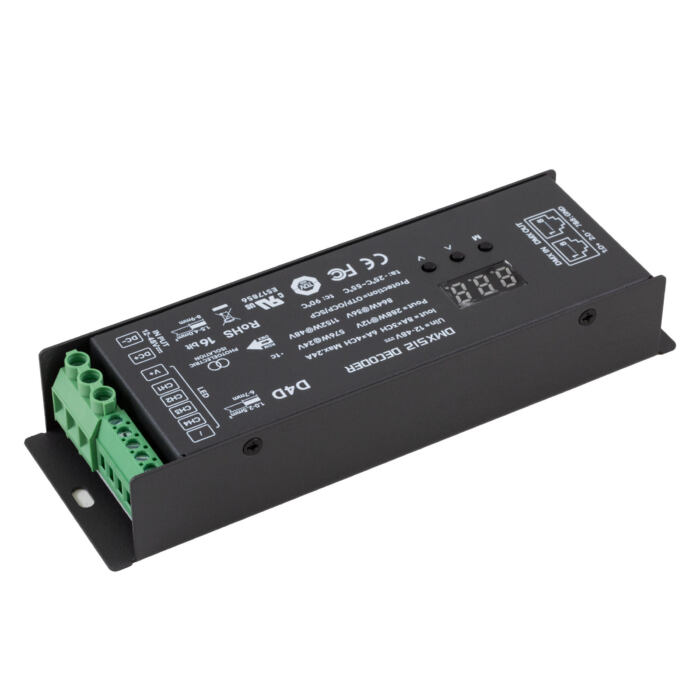

D4D 4 Channel DMX RDM Constant Voltage Decoder with RJ45 Interface

The D4D is a 4 channel constant voltage DMX and RDM decoder designed for professional LED control systems. It supports flexible dimming, multiple output modes, adjustable PWM frequency, and RJ45 DMX connectivity for streamlined system integration.

The decoder supports both DMX decoding mode and DMX control mode, allowing it to receive DMX signals or control other decoders using built in lighting effects. With selectable DIM, CT, RGB, and RGBW output modes, the D4D is suitable for a range of constant voltage LED applications.

The D4D delivers smooth and precise lighting control with selectable 8 bit or 16 bit grayscale, linear or logarithmic dimming curves, and PWM frequency options up to 18000Hz. Integrated protection for short circuit, over temperature, over current, and reverse polarity helps support dependable operation in demanding installations.

Features:

  • 4 channel constant voltage DMX and RDM decoder
  • RJ45 DMX interface
  • DMX decoding mode and DMX control mode selectable
  • Supports DIM, CT, RGB, and RGBW output modes
  • 8 bit and 16 bit grayscale options
  • Adjustable PWM frequency from 300Hz to 18000Hz
  • Linear and logarithmic dimming curve options
  • 10 built in lighting effects
  • 8 dynamic speed levels
  • 255 brightness levels
  • Digital display with button based address and parameter setup
  • RDM parameter configuration supported through master controller or mobile app
  • Automatic recovery protection for short circuit, over temperature, over current, and reverse polarity

Note:

  • The WiFi RDM01 editor is sold separately.

Specifications:

  • Model: D4D
  • Product Type: Constant voltage 4 channel DMX RDM decoder
  • Input Signal: DMX512 and RDM
  • Input Voltage: 12V to 48V DC
  • Output Type: Constant voltage
  • Output Channels: 4 channels
  • Output Current: 6A x 4CH or 8A x 3CH maximum
  • Output Power: 288W at 12V, 576W at 24V, 864W at 36V, 1152W at 48V
  • Dimming Range: 0 to 100 percent
  • Grayscale: 8 bit or 16 bit selectable
  • PWM Frequency: 300Hz, 600Hz, 1200Hz, 1500Hz, 1800Hz, 2400Hz, 3600Hz, 7200Hz, 10800Hz, 14400Hz, 18000Hz
  • Output Modes: DIM, CT, RGB, RGBW
  • Dimming Curve: Linear or logarithmic
  • Protection: Short circuit, over temperature, over current, reverse polarity
  • Working Temperature: 25 degrees Celsius below zero to 55 degrees Celsius
  • Dimensions: L175 x W55 x H30mm
  • Package Size: L188 x W61 x H40mm
  • Gross Weight: 365g plus or minus 5g
  • Certifications: CE, FCC Part 15 Class B
  • Standards: EN 55015, EN 61547

Box Content:

  • D4D Decoder
  • Datasheet
