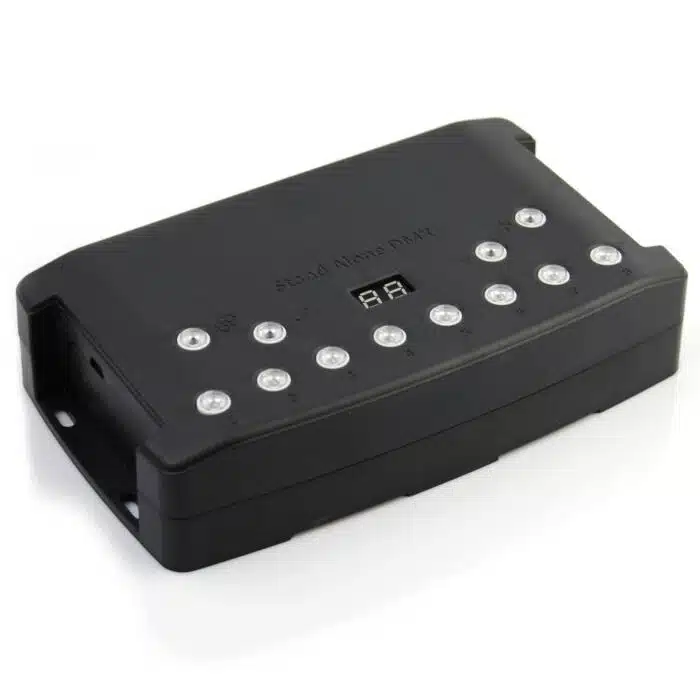

Chromateq CQSA-1024 USB DMX Ethernet Stand-Alone Lighting Interface (Open Box)

Chromateq CQSA-1024 USB DMX is the definitive perfect DMX controller for all entertainment and architectural projects. Hardware is compatible with LED Player, Pro DMX, and Studio DMX software, so the interface is suitable for all Live applications and fixed installations. The interface can play back a complete project without a PC, and the additional SD card slot allows for the possibility of extending the memory capacity. Users can customize the interface functions and modes; it is possible to choose what mode to activate or not in Stand Alone from any of the available modes (Trigger, Page, Color, Dimmer, Speed) and load the modes of your choice in memory.

*All Chromateq™ Lighting Management Software is Free and requires a Chromateq™ Device or Interface to transform your computer into an impressively adaptable and effective DMX Controller. ** Requires the customer’s email and serial number

Main Features:

  • DMX Live & Stand Alone Controller
  • 1024 DMX Channels (2×512) in Live mode
  • 1024 DMX Channels (2×512) in Stand Alone mode
  • 2 Art-Net Universes in Live mode running LED Player or Pro DMX Software
  • 8 Art-Net Universes in Live mode running Pixxem software
  • Art-Net + DMX feature:  Play 2 x DMX universes + 2 x Art-Net universes (4 universes total)
  • LED Player, Pro DMX, Pixxem & Studio DMX Software compatible*
  • Stand Alone Memory Step capacity:  10K to 2K steps
  • 512 Max Scene capacity
  • Wi-Light 2 APP from mobile (Android + iOS, LAN, WLAN, Internet)
  • Node 2 ports, Art-Net to DMX decoder and converter (DHCP, Static IP)
  • Multi Zones Play up to 5 scenes simultaneously (Stand Alone)
  • Pixel Mapping & Video Mixing
  • SD Card reader (supports all FAT formats, Class 10 SD, up to 256 GB) (SD card not included)
  • Splitter mode and merging DMX
  • Internal memory (No SD card required)
  • 12 devices max on USB

Stand-Alone Features:

  • 6 selectable modes:  Scene trigger buttons, Pages (10), Zones (5), Colour (99 colors + 8 RGBW), speed, General dimmer
  • Time Clock setting adjustable in Stand Alone
  • Cross Fade time between scenes
  • 16 bits and fine channel management
  • Automatic Scene Recovery if the power is cut off
  • Setting and configuration via Wi Light 2
  • Master/Slave mode (Wired, 32 devices max)

Trigger options (PC + Stand Alone):

  • Wi-Light APP from mobile devices (Android + iOS)
  • 8 Scene or Color buttons for direct selections
  • Real-Time Clock RTC and Calendar (Hour, Day, Week, Month, Year) for each scene (Stand Alone Only)
  • 7 contacts on 3 to 5V (On, On/Off, Release, Restart, Priority)
  • Up to 127 contacts when multiplexed
  • DMX In (Signal from another DMX device)
  • Infrared remote, Light intensity (with optional sensor, sold separately)
  • Master/Slave mode (up to 64 devices combined in Stand Alone)
  • Commands from the Contacts (Speed, scene, dimmer, zone)
  • RS232 triggers in PC and Stand Alone

General Specifications:

  • DMX Output:  1024 Channels
  • USB:  Yes
  • Color:  Black
  • Chassis:  Black ABS plastic with 4 mounting slots
  • Power Input:  5 to 24V – 0.2A (DC connector)
  • USB Connection:  Mini USB 2.0 (Input) – 5V DC

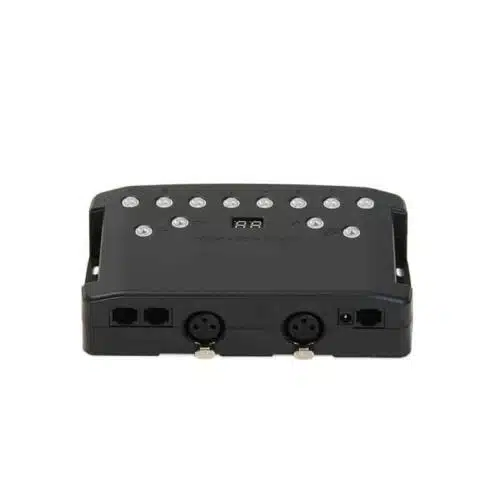

  • Connectors:  2 XLR3 and RJ45 (Triggers, I/O)
  • Dimensions:  9.70 x 16.60 x 3.80 cm (3.82 x 6.54 x 1.49 in)
  • Weight:  200 g (7.10 oz)
  • Operating temperatures: -40 to +85 Cº
  • IP Rating: IP40
  • Certifications: CE, RoHS, LVD

Stand Alone:

  • DMX Out (16-bit): 1024 Channels
  • Zone (Play 1 scene at a time):  5 Zones
  • Max Device Connected:  32 (Wired as M/S on RJ1)
  • DMX (Software & Live)
    • LED Player:  1024 Channels (2×512)
    • Pro DMX:  1024 Channels (2×512)
    • PIXXEM:  1024 Channels (2×512)

Software Options:

  • Studio DMX:  3D Viewer (real-time lighting visualization)
  • Art-Net (Software & Live)
    • LED Player:  2 Universes (2×512)
    • Pro DMX:  2 Universes (2×512)
    • Pixxem:  8 Universes (8×512)



Condition: Open Box
