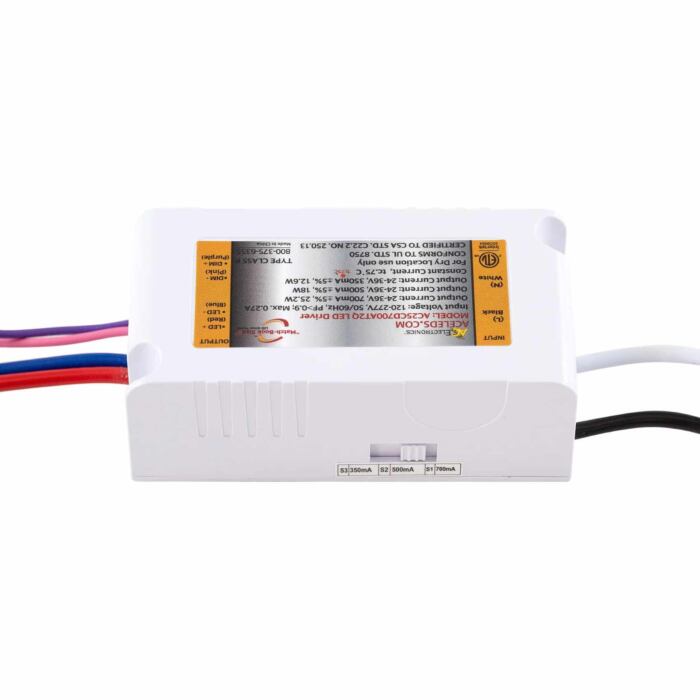

ACE LEDS 25 Watt 0-10V Dimming Constant Current Match-Book Sized LED Driver AC25CD700AT2Q

The ACE LEDS 25 Watt Match-Book Sized 0-10V Dimming LED Driver offers powerful performance in one of the smallest form factors available in the lighting industry. Designed to meet the demands of compact and space-restricted lighting applications, this driver is up to 75% smaller than traditional dimming drivers, making it a game-changer for architects, lighting designers, and fixture manufacturers who require maximum design flexibility without sacrificing performance.

Despite its compact size, this advanced LED driver delivers full-range 0-10V dimming, providing smooth and flicker-free dimming control for a variety of LED lighting systems. Whether you’re designing slim-profile fixtures, under-cabinet lights, or architectural luminaires, the Match-Book sized driver fits seamlessly into tight spaces where standard drivers simply won’t fit.

The 25W power rating makes it ideal for medium-output applications, offering a reliable and efficient solution that helps meet energy codes and sustainability goals. Engineered for durability and thermal performance, it ensures long-lasting operation even in challenging environments.

In summary, the ACE LEDS 25 Watt Match-Book driver combines industry-leading size reduction with high-performance dimming capabilities, making it an excellent choice for next-generation LED fixture designs where space, control, and efficiency matter most.

Product Features

  • Constant Current LED Driver
  • Input Voltage: 120-277VAC (±10%)
  • Input Frequency: 50/60Hz
  • Output Voltage: 20-36VDC
  • Output Current:
    • 700mA ±5%, 25.2W
    • 500mA ±5%, 18W
    • 350mA, ±5%, 12/6W
  • Dimming:  5 to 100%
  • Side Mount/Leads
  • Multi-Switching Current
  • Class P Listed
  • Input/Output Isolation
  • Surge Protection (2KV)
  • Open/Short Circuit Protection
  • LED driver has a life expectancy of 50,000 hours at Tcase of ≤75°C
  • Product Dimensions (L x W x H):  2.88″ x 1.43″ x 1.07″
  • Warranty:  5 yrs based on max case temp of 75°C

Installation

  • LED drivers shall be installed in electrical enclosures
  • The max Remote installation distance is 33 ft
  • 22AWG 600V/105C tinned stranded copper lead wires are required to use in the installation

Documents

SKU# AC25CD700AT2Q
