SDD-DIM Series 60W Driver + Dimmer 2-in-1 Constant Voltage LED Driver

Description

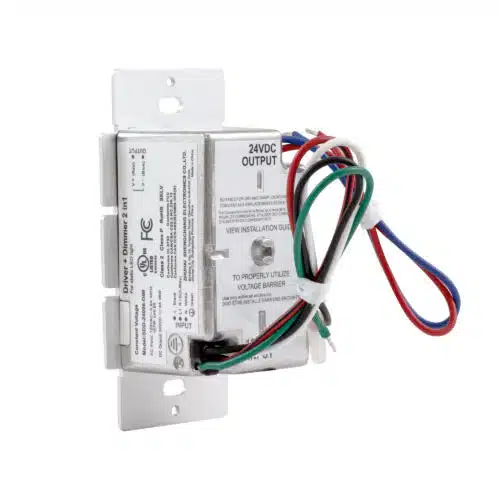

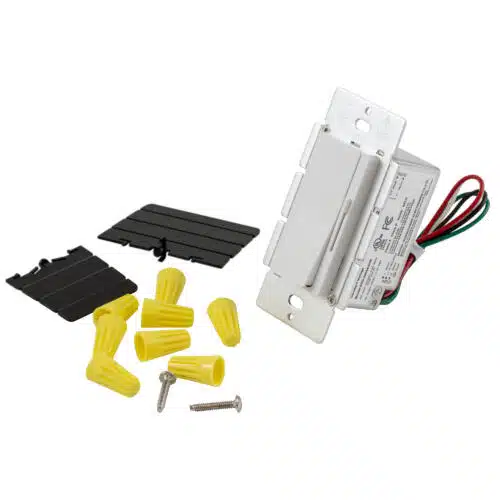

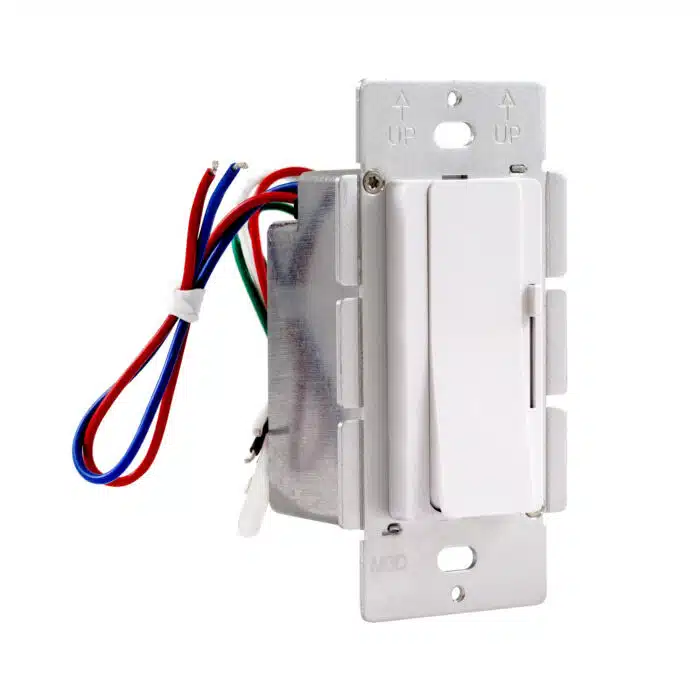

SDD-DIM Series 60W Driver + Dimmer 2-in-1 Constant Voltage LED Driver

The SDD-DIM Series is a 2-in-1 LED driver and dimmer designed for constant voltage lighting applications. It integrates a built-in dimmer with smooth PWM output for precise control and flicker-free performance. Engineered for reliability, it includes multiple protection features and supports a wide dimming range for versatile LED installations.

Product Features

•  Integrated driver and dimmer in one unit
• Constant voltage output with adjustable voltage tuning
• Wide dimming range from 0.3% to 100%
• Built-in active PFC function
• Flicker-free 16KHz PWM output with gamma 2.2 curve
• Compatible with 3-way switches and preset on/off dimmer
• Protection against short circuit, overload, and over-temperature
• Designed for dry and damp locations

Technical Specs

• Input Voltage: 120VAC
• Output Voltage Options: 12V / 24V / 48V (adjustable range per model)
• Rated Power: 60W
• Rated Current: 5A / 2.5A / 1.25A (model dependent)
• Efficiency: Up to 92%
• Power Factor: 0.99 @ full load
• Frequency Range: 60Hz
• Operating Temperature: -40°C to +60°C
• Dimensions: 105 × 54 × 52 mm
• Weight: 0.25 kg

Important Information

• Installation must be performed by a qualified professional
• Ensure proper ventilation for heat dissipation
• Verify correct wiring to prevent damage
• Dimmer panel is not replaceable
• 5-year warranty included

Documents:

• Datasheet

SKU# SDD-12060-DIM, SDD-24060-DIM, SDD-24096-DIM, SDD-24160-DIM
